Case 07 / Corrugated Packaging Equipment
Bottom-Printing Die-Cutting & Stacking Collection Line
Electrical and motion-control engineering for a corrugated packaging line serving complex die-cut box, machine-pack box and pre-printed box orders in Brazil.
Equipment
Bottom-printing die-cutting and stacking collection line
Control Platform
Siemens S7-1516T PLC, HMI and multi-axis motion control
Engineering Scope
Electrical design, cabinet build, wiring, commissioning and FAT
Machine Characteristics
Designed for high-mix packaging orders
- 01Precise counting, intelligent operation, safe production and efficient line handling.
- 02Configurable double-sided printing, mature bottom-printing die-cutting and clean waste removal.
- 03Suitable for complex die-cut boxes, machine-pack boxes and pre-printed box orders, including one-point multi-die-cutting workflows.
- 04Vacuum stacking, continuous paper feeding, bundle output without speed reduction and modular stacking combinations.
- 05Designed for a two-to-three-person operating team to support labor reduction and productivity improvement.
Control Architecture
Synchronized motion for die-cutting

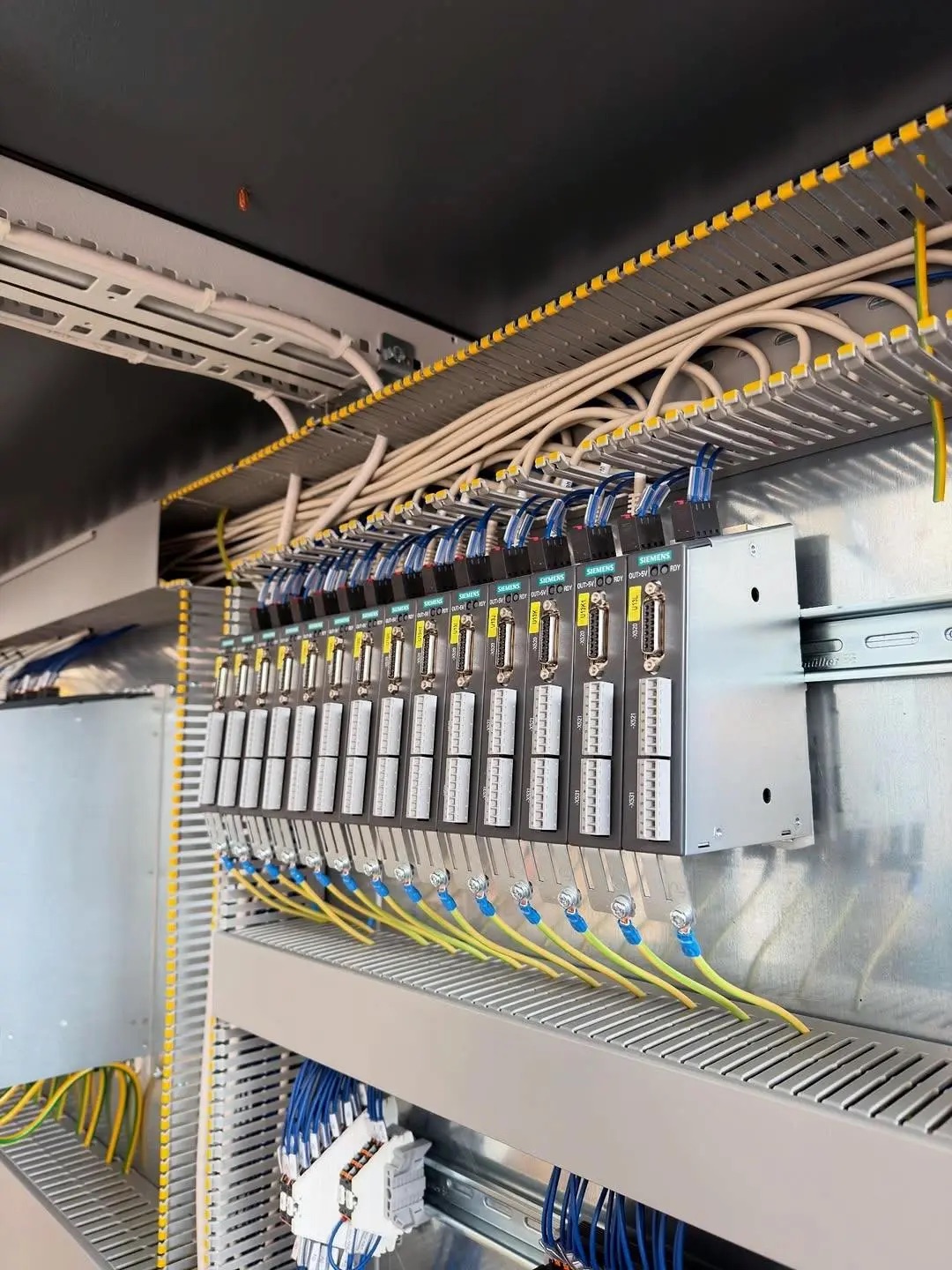

The multi-axis architecture uses Siemens multi-axis motion modules with S220 multi-axis motion-control drives and PID algorithms for synchronized die-cutting motion.
VectorTech Scope
From electrical concept to FAT
VectorTech Controls was responsible for the electrical design, control-cabinet manufacturing, wiring, commissioning and factory acceptance testing for the line.
The project was an updated electrical solution based on the original equipment. The redesign focused on a more compact and rational layout, a more practical safety circuit and remote diagnostics for future support.

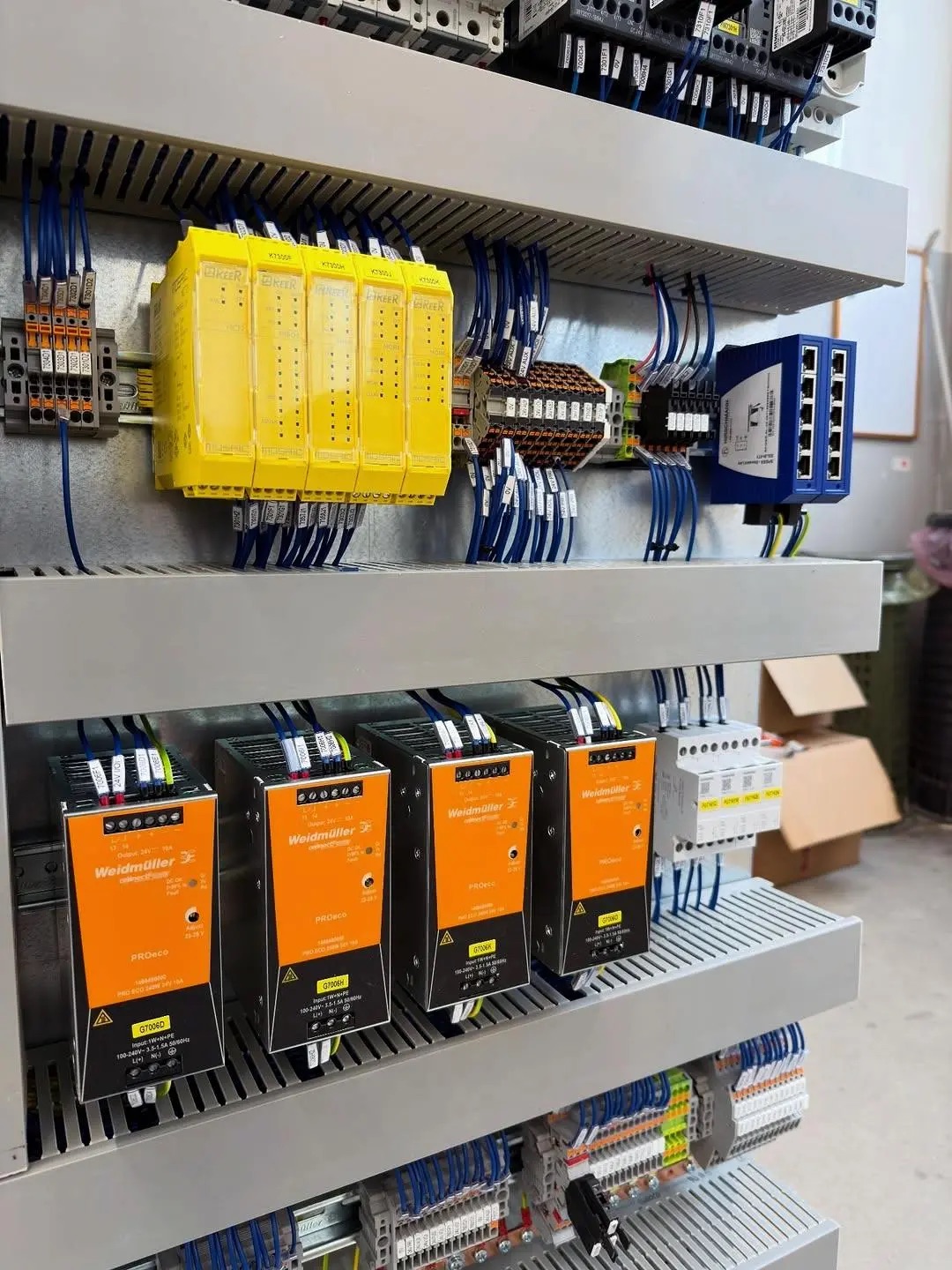

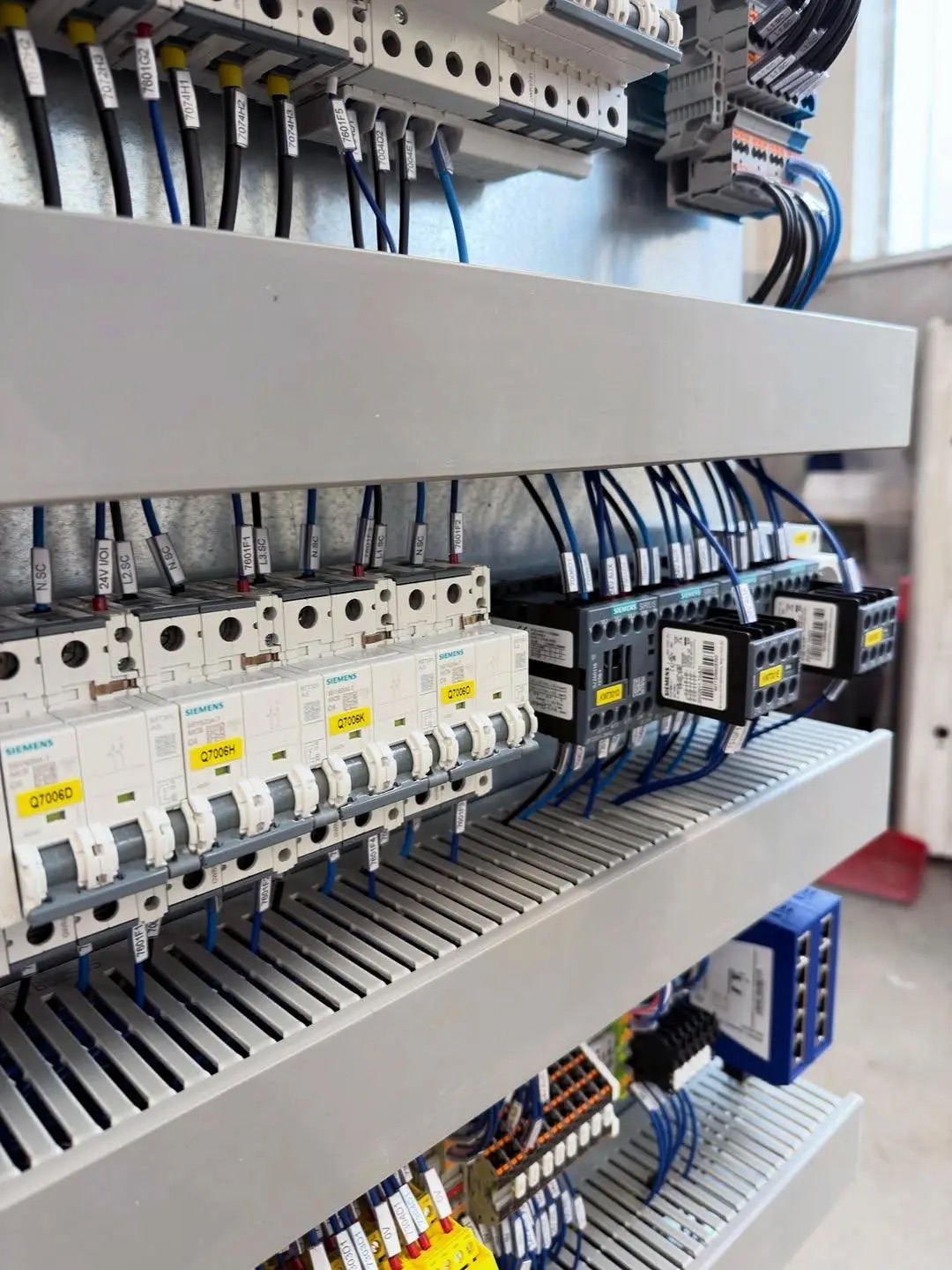

Compact electrical layout
A more reasonable cabinet arrangement for the machine-control scope.
Improved safety circuit
Safety logic refined as part of the updated electrical design solution.
Remote diagnostics
Remote diagnostic capability included in the public project scope.
Project Gallery
Corrugated line and control engineering reference
The gallery uses the supplied project photographs. Click any image to inspect the larger view.
